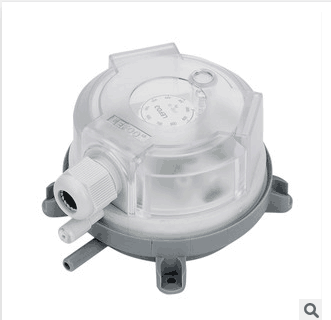

Air differential pressure switch

Product parameters:
Measuring range: 30Pa ~ 300Pa
Protection: IP54
Maximum pressure: 12000Pa
Storage Temperature: -40 ~ 85 ℃
The minimum starting pressure: Standard: 20Pa; adjustable by set point
The minimum start-up gap: 10Pa (range: 20 ~ 30Pa)
Linearity: Range 30 ~ 300Pa
Mounting Orientation: Vertical (standard installation direction)
Plastic pipe diameter: Φ6.2mm
Life time: mechanical cycles> 100000
Weight: 100 grams

Installation:
Location: installed in the location with minimal vibration. Temperature of the medium should be -15 / +60 ℃. SA101 is produced at normal insider temperature, so its better to be mounted in a similar condition. High humidity may cause condensation phenomenon, the hoseconnecting knot should be keep downwards. Pressure connections and wiring: Pressure connection point marked P1 ⊕ and P2Θ, can not be wrong.

Note:
+ To avoid electrical shock or damage to equipment / when remove the cover Make sure the power switch is turned off.
+ Should check the wiring connection status before using/ incorrect connection may cause permanent damage to this device.

Assembly instructions:
+ As long as the mounting surface can bewith minimal or no shock vibration, the pressure switches can be fixed on the pipe, panel heaters or air conditioning unitsdirectly.
+ To ensure the accuracy of the operation, the pressure switch should be mounted vertically
